DC-Series Screening Bucket
DC-SERIES DESIGNED FOR MINI EXCAVATORS
The ALLU Transformer DC-Series are high-quality screening buckets designed for 2-6 t base machines, bringing world-class ALLU quality to jobs of all sizes. The DC-Series is available in two bucket sizes: 2-04 and 2-08.
Lightweight and low structure – The compact size of the bucket enables good handling and balance. The lightweight bucket ensures the excavator’s stability, and its low structure design eases bucket filling. It can be mounted directly on the boom or used with a tilt-rotator.
Crushing and screening in the same bucket – The bucket can efficiently screen, separate, and crush different materials. It’s made of wear resistant steel, which, together with the TS blade structure, also allows the crushing of hardened material.
Self-cleaning drum and screening bed – The bucket can handle screening of difficult materials such as wet, tough, or soil that has hardened lumps in it. The drums can be rotated in both directions to ease the material handli
Plug’n’play – The bucket has easy hydraulic connections and low oil flow requirements without a separate leakage line. The hydraulic connections are protected behind the bucket.
ALLU TRANSFORMER DC-SERIES

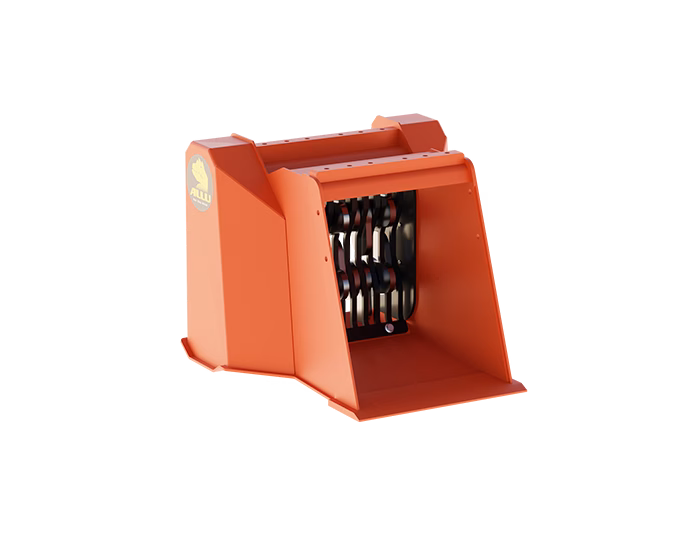

DC 2-04

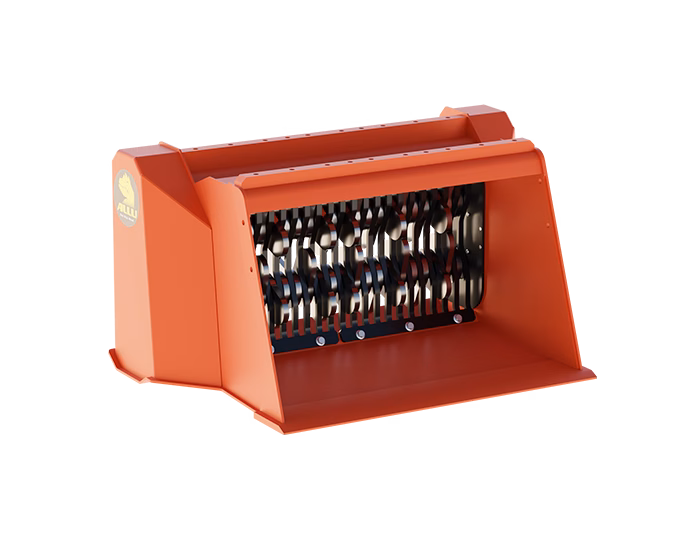

DC 2-08
Technical Specifications
| Excavator | 2 – 4 t |
| Volume | 0.11 |
| Max. Pressure | 200 |
| Oil flow | 15 – 30 (L/min) |
| Weight | 170 kg |
| Excavator | 4 – 6 t |
| Volume | 0.23 |
| Max. Pressure | 200 |
| Oil flow | 20 – 40 (L/min) |
| Weight | 270 kg |
BETTER FOR YOU
BETTER FOR THE ENVIRONMENT
YOUR EFFICIENCY
Screen, crush, aerate, mix and load all in a “one-step operation”. Replace additional machines by completing different work tasks in one go.
YOUR GREEN CREDENTIALS
Less material to be transported to the jobsite means a reduction in fuel consumption. Less materials to a landfill and efficient utilization of waste materials supports sustainability
YOUR MACHINES
Your excavator, wheel loader, and skid-steer will transform into a multifunctional tool that will screen, crush, mix, aerate, pulverize and load all in a one-step operation.
YOUR PROFITS
Less material to a landfill means less expenditure. Re-use the material on site, so there is no need to purchase virgin material. Recycle and utilize the left-over materials and generate an income from it.
TRANSFORMER DC Features
Strong and reliable – Motors placed inside the frame to avoid any damages from the outside; lubrication inside the chain boxes ensure long transmission lifetime.
Efficient – Produces homogenous end product; high production even with wet materials; quick and easy to maintain; screens material with back and forth rotation; Self-cleaning design (TS)
Versatile – Suitable for excavators, wheel loaders, tractors and skid steer; can be mounted to an excavator both as backhoe and as front shovel; Handles many different materials – also wet ones.
MAXIMISE PROFITABILITY, EFFICIENCY
AND SAFETY ON SITE
ALLU Transformers are fitted with the ALLU Sensor to maximise the profitability, efficiency and safety at the job sites.
- Working hours
- Correct working angle
- State of the machine – proactively suggesting maintenance and replacement of wear parts
- Weight of the Transformer without adapter
- Warranty
- Troubleshooting
Main Application Areas
- Areating
- Screening
- Composting
- Pipeline padding
- Waste material handling
- Landscaping
