Variable Drum
ALLU VARIABLE DRUM
The ALLU Variable Drum is a new drum structure under our patented ALLU TS (Top Screen) design with a rapid blade change mechanism. Innovation is designed to streamline your operations and boost your productivity by up to 10%. It’s available across our DN-, DS-, and DH-Series. The VD Drum is a game-changer in material processing efficiency.
Versatility Made Simple: The Variable Drum brings flexibility to your workflow. Individual shaft removal allows for quick blade replacements or adjustments to output sizes, all within a matter of hours. This adaptability is crucial for those requiring varied operations from a single Transformer Screener Crusher bucket, enabling easy and fast modifications to meet job demands.
Elevate Your Productivity: Achieve superior screening performance with the Variable Drum, designed for up to a 10% increase in efficiency over traditional drum setups. You can get higher output with fewer screening combs and less restriction on material flow. Adjusting output sizes is straightforward, allowing for more efficient operation with less effort.

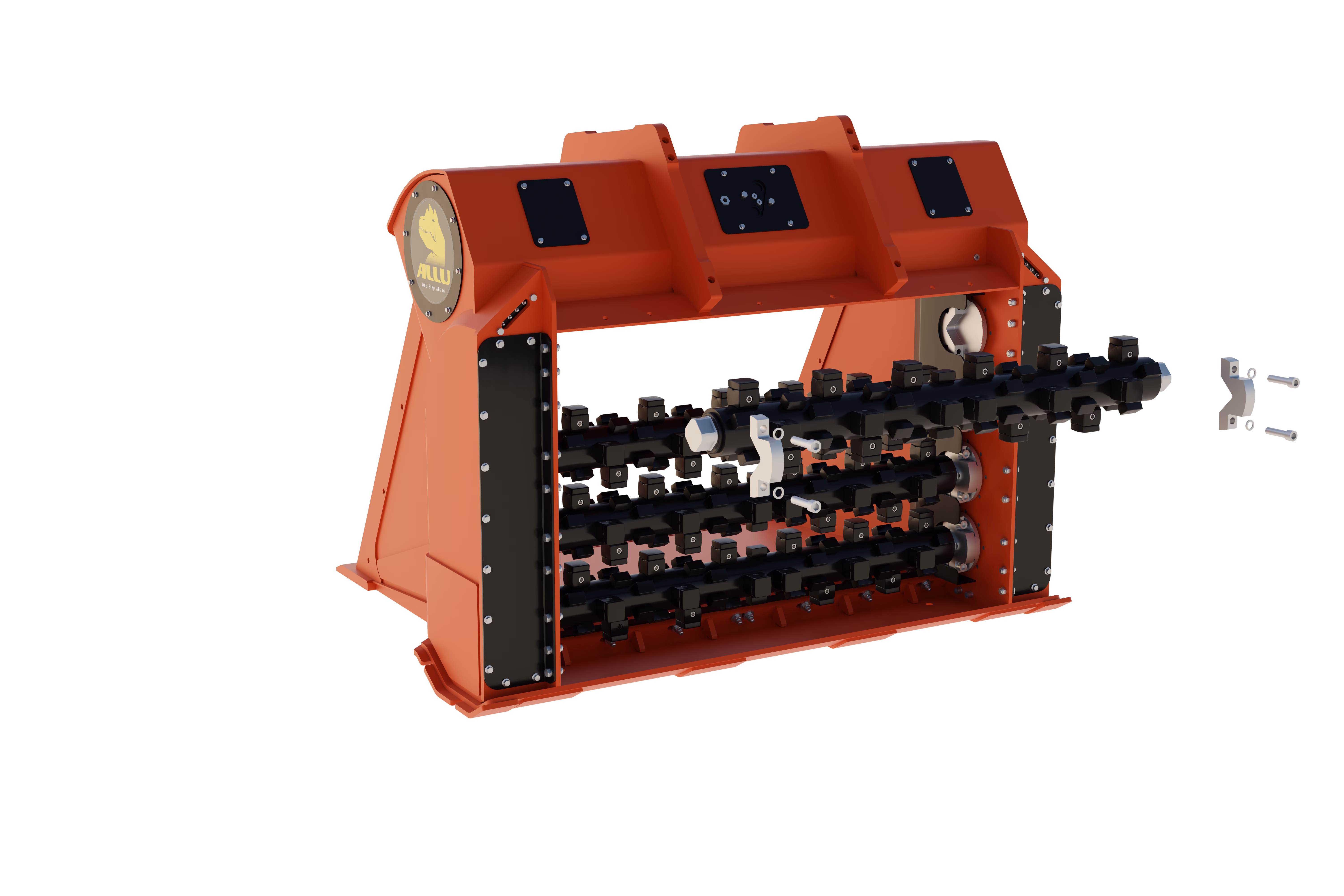

Effortless Maintenance: The innovative design of the Variable Drum simplifies maintenance tasks. Its three-bolt drum attachment system allows easy changes. Changing wear parts or modifying output sizes has never been easier or cleaner, eliminating the need to access the drive compartment and significantly reducing labor time.
*The Variable Drum is currently available in these models.
- DN, DS, DH 2-12, 3-12, 3-17
- DS, DH 4-17
BETTER FOR YOU
BETTER FOR THE ENVIRONMENT
YOUR EFFICIENCY
Screen, crush, aerate, mix and load all in a “one-step operation”. Replace additional machines by completing different work tasks in one go.
YOUR GREEN CREDENTIALS
Less material to be transported to the jobsite means a reduction in fuel consumption. Less materials to a landfill and efficient utilization of waste materials supports sustainability
YOUR MACHINES
Your excavator, wheel loader, and skid-steer will transform into a multifunctional tool that will screen, crush, mix, aerate, pulverize and load all in a one-step operation.
YOUR PROFITS
Less material to a landfill means less expenditure. Re-use the material on site, so there is no need to purchase virgin material. Recycle and utilize the left-over materials and generate an income from it.
D-Series Features
ALLU Transformer D-Series Screening Buckets are designed for larger material handling jobs, from compost aeration to landscaping and construction waste treatment, not forgetting pipeline backfilling. This is a hydraulic attachment for excavators and loaders, that screens, crushes, aerates, mixes, separates, feeds and loads materials in a one-step operation.
Efficient – process materials fast and efficiently in one step
Mobile – converts your base machine into a mobile processing plant
Greener – smaller carbon footprint and reduced material transportation costs
Plug & play – simple installation to excavators and wheel loaders
Changeable blades – change between different fragment sizes and applications
Self-cleaning design – works well even with wet materials
TS STRUCTURE
ONE UNIT – THREE FRAGMENT SIZES
VERSATILE PROCESSING
The unique ALLU TS structure enables three different fragment sizes with the same unit. Fragment size estimation is based on screening comb distance. It is a quick and easy way to change from one screening job to another.
SELF-CLEANING DESIGN
Due to ALLU TS’s Self-Cleaning Design, it allows the best possible capacity even with wet materials. We call this innovative design, a Non-Clogging Structure.
BLADE THICKNESS
8 mm
16 mm
25 mm
35 mm
ALLU TS-structure features a variety of blade thicknesses, which makes the TS-structure perfectly suited to a multitude of screening and mixing tasks. These blade thicknesses determine the fragment size of the end product.
Technical Specifications
| Excavator | 12 – 28 t |
| Wheeloader | 6 – 14 t |
| Volume | 0.52 – 0.66 m3 |
| Oil flow | 70 – 120 LPM |
| Weight | 1130 kg |
| Excavator | 16 – 28 t |
| Wheeloaders | 7 – 14 t |
| Volume | 0.79 – 1.01 m3 |
| Oil flow | 95 – 160 LPM |
| Weight | 1410 kg |
| Excavator | 20 – 28 t |
| Wheeloaders | 7 – 14 t |
| Volume | 1.15 – 1.53 m3 |
| Oil flow | 95 – 160 LPM |
| Weight | 1760 kg |
| Excavator | 16 – 35 t |
| Wheeloaders | 8 – 22 t |
| Volume | 0.83 – 1.04 m3 |
| Oil flow | 95 – 160 LPM |
| Weight | 1610 kg |
| Excavator | 20 – 35 t |
| Wheeloaders | 8 – 22 t |
| Volume | 1.22 – 1.57 m3 |
| Oil flow | 95 – 160 LPM |
| Weight | 2000 kg |
| Excavator | 24 – 35 t |
| Wheeloaders | 12 – 22 t |
| Volume | 1.82 – 2.38 m3 |
| Oil flow | 120 – 200 LPM |
| Weight | 2360 kg |
| Excavator | 18 – 45 t |
| Wheeloaders | 8 – 30 t |
| Volume | 0.85 – 1.07 m3 |
| Oil flow | 140 – 235 LPM |
| Weight | 1950 kg |
| Excavator | 22 – 45 t |
| Wheeloaders | 10 – 30 t |
| Volume | 1.25 – 1.62 m3 |
| Oil flow | 140 – 235 LPM |
| Weight | 2400 kg |
| Excavator | 27 – 45 t |
| Wheeloaders | 14 – 30 t |
| Volume | 1.85 – 2.43 m3 |
| Oil flow | 140 – 235 LPM |
| Weight | 2780 kg |
| Excavator | 12 – 28 t |
| Wheeloader | 6-14 t |
| Volume m3 | 0.52-0.66 m3 |
| Oil Flow | 90-160 LPM |
| Weight | 1160 kg |
| Excavator | 16-28 t |
| Wheeloader | 7-14 t |
| Volume | 0.76-0.99 m3 |
| Oil Flow | 120-200 LPM |
| Weight | 1440 kg |
| Excavator | 20-28 t |
| Wheeloader | 9-14 t |
| Volume | 1.15-1.53 m3 |
| Oil Flow | 120-200 LPM |
| Weight | 1830 kg |
| Excavator | 16-35 t |
| Wheeloader | 8-22 t |
| Volume | 0.83-1.04 m3 |
| Oil Flow | 120-200 LPM |
| Weight | 1630 kg |
| Excavator | 20-35 t |
| Wheeloader | 9-22 t |
| Volume | 1.22-1.57 m3 |
| Oil Flow | 120-200 LPM |
| Weight | 2010 kg |
| Excavator | 24-35 t |
| Wheeloader | 12-22 t |
| Volume | 1.82-2.38 m3 |
| Oil Flow | 140-235 LPM |
| Weight | 2520 kg |
| Excavator | 18-45 t |
| Wheeloader | 8-30 t |
| Volume | 0.85-1.07 m3 |
| Oil Flow | 190-315 LPM |
| Weight | 1970 kg |
| Excavator | 22-45 t |
| Wheeloader | 10-30 t |
| Volume | 1.25-1.61 m3 |
| Oil Flow | 190-315 LPM |
| Weight | 2460 kg |
| Excavator | 27-45 t |
| Wheeloader | 14-30 t |
| Volume | 1.85-2.43 m3 |
| Oil Flow | 190-315 LPM |
| Weight | 2890 kg |
MAXIMISE PROFITABILITY, EFFICIENCY
AND SAFETY ON SITE
ALLU Transformers are fitted with the ALLU Sensor to maximise the profitability, efficiency and safety at the job sites.
- Working hours
- Correct working angle
- State of the machine – proactively suggesting maintenance and replacement of wear parts
- Weight of the Transformer without adapter
- Warranty
- Troubleshooting
Main Application Areas
- Demolition
- Excavation
- Construction
- Utility and Road works
- Waste Recycling
- Asphalt Recycling
- Waste Rock Handling at quarries
- Concrete Pipe Industry
- Topsoil screening
