ALLU TRANSFORMER SCREENER CRUSHER D-SERIES
ALLU Transformer is a hydraulic material handling attachment for wheel loaders, excavators, skid steer loaders, and backhoe.
ALLU TRANSFORMER SCREENER CRUSHER D-SERIES
ALLU Transformer Screener Crusher D-Series is a versatile attachment designed for material processing, screening, and recycling applications. These attachments are compatible with excavators, wheel loaders, offering a wide range of benefits and functionalities.
ALLU Transformer D-Series enables efficient screening of materials into different particle sizes. The machine can screen and separate various materials, including different soil types, sand, gravel, topsoil, compost, demolition waste, and biomass, producing end products of different fractions. ALLU Transformer D-Series is suitable for various applications, including construction, excavation, recycling, landscaping, and agriculture.
ALLU D-Series screener crushers adapt and transform according to the application. With interchangeable blades and segments of various sizes, the operator can easily adjust the particle size to meet the different requirements of job sites.
ALLU Transformer Bucket D-Series is designed for high efficiency and productivity. It eliminates the need for separate screening and processing equipment, streamlining operations and saving time and costs. Integrating the ALLU Transformer D-Series bucket into material handling and recycling promotes sustainable practices. On-site screening and processing reduce the need for external transportation and minimize environmental impact.
ALLU Transformer screening buckets are user-friendly and allow for quick attachment to excavators and wheel loaders. They operate using the base machine’s hydraulic system, ensuring easy control and operation. The D-Series attachments efficiently optimize resource usage by effectively separating materials, promoting waste reduction, and enhancing project efficiency.
ALLU Transformer D-Series

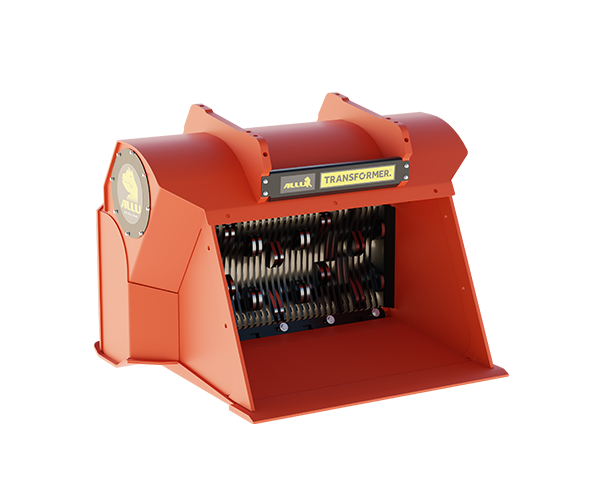

DN-2-12-TS16_32-S
DN 2-12-X75

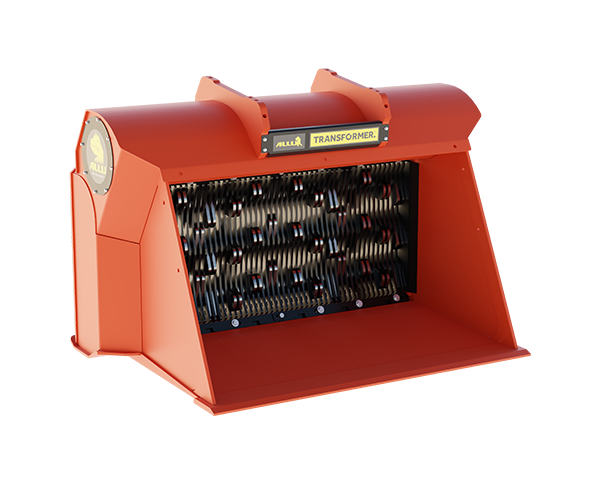

DN-3-17-TS16_32-S
DN 3-17 X75

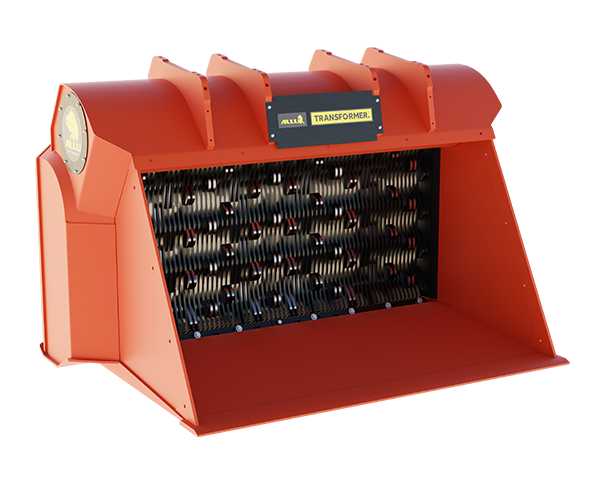

DS-4-23-TS16_32-S
DS 4-23 X75
BETTER FOR YOU
BETTER FOR THE ENVIRONMENT
YOUR EFFICIENCY
Screen, crush, aerate, mix and load all in a “one-step operation”. Replace additional machines by completing different work tasks in one go.
YOUR GREEN CREDENTIALS
Less material to be transported to the jobsite means a reduction in fuel consumption. Less materials to a landfill and efficient utilization of waste materials supports sustainability
YOUR MACHINES
Your excavator, wheel loader, and skid-steer will transform into a multifunctional tool that will screen, crush, mix, aerate, pulverize and load all in a one-step operation.
YOUR PROFITS
Less material to a landfill means less expenditure. Re-use the material on site, so there is no need to purchase virgin material. Recycle and utilize the left-over materials and generate an income from it.

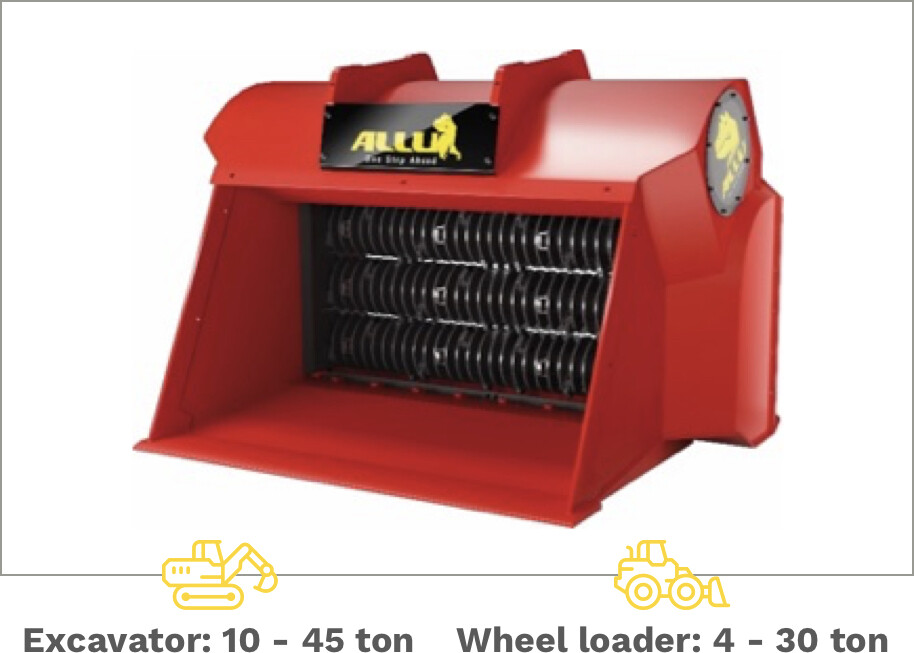

TRANSFORMER D Features
ALLU Transformer D-Series screening buckets are designed for larger material handling jobs, from compost aeration to landscaping and construction waste treatment, not forgetting pipeline backfilling. This is a hydraulic attachment for excavators and loaders, that screens, crushes, aerates, mixes, separates, feeds and loads materials in a one-step operation.
Efficient – process materials fast and efficiently in one step
Mobile – converts your base machine into a mobile processing plant
Greener – smaller carbon footprint and reduced material transportation costs
Plug & play – simple installation to excavators and wheel loaders
Changeable blades – change between different fragment sizes and applications
Self-cleaning design – works well even with wet materials
TS STRUCTURE

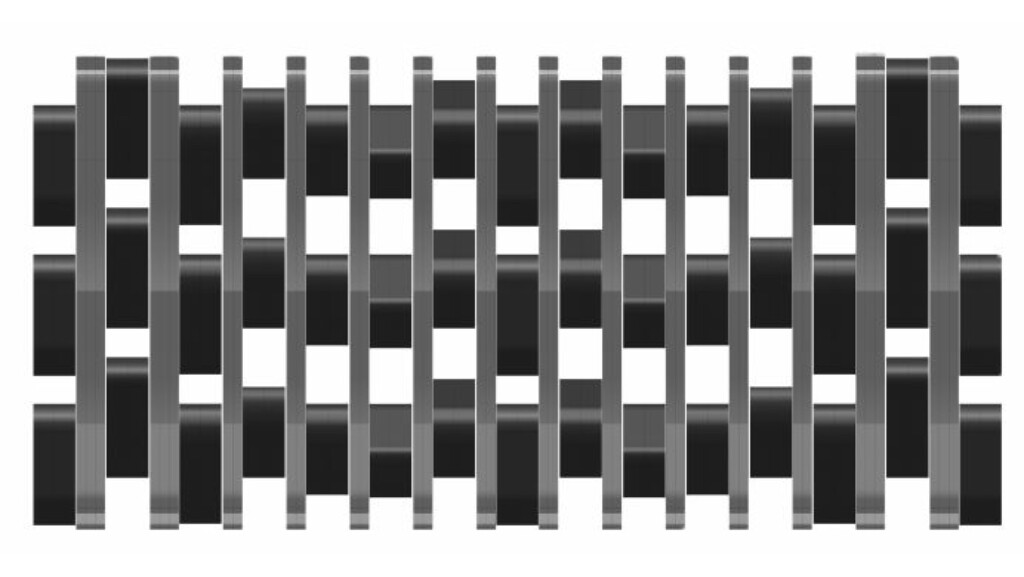

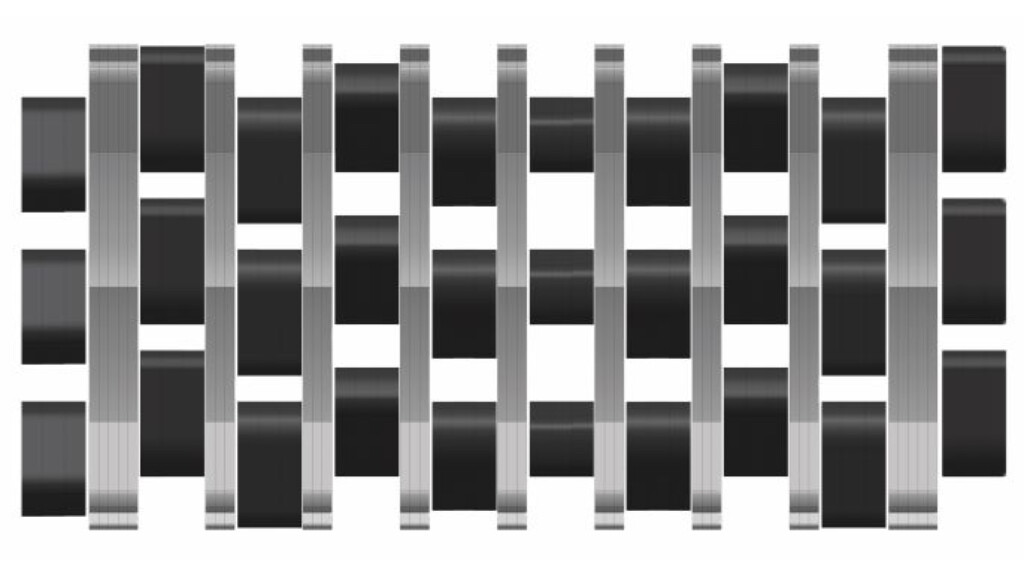

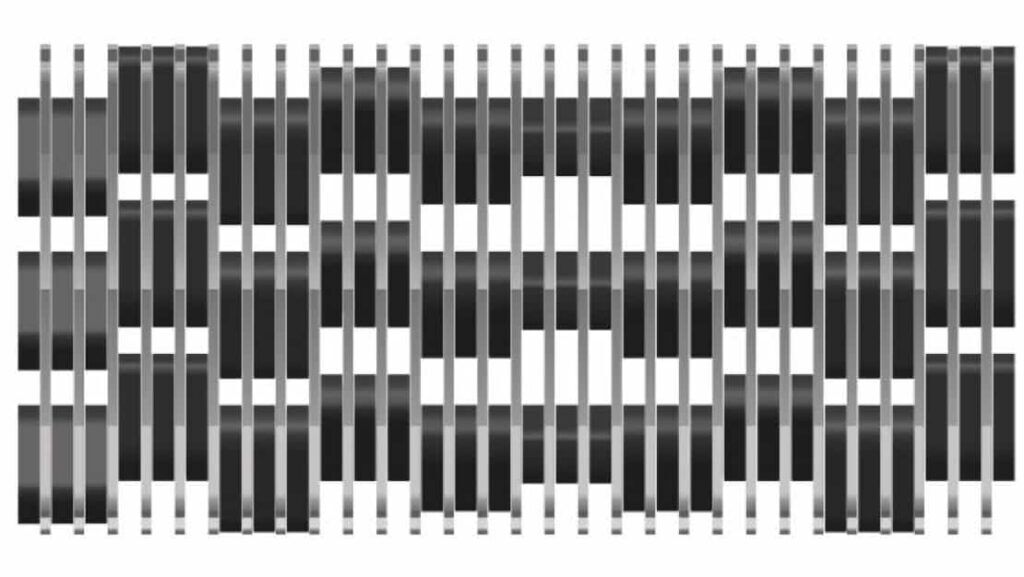

ONE UNIT – THREE FRAGMENT SIZES
VERSATILE PROCESSING
The unique ALLU TS structure enables three different fragment sizes with the same unit. Fragment size estimation is based on screening comb distance. It is a quick and easy way to change from one screening job to another.
SELF-CLEANING DESIGN
Due to ALLU TS’s Self-Cleaning Design, it allows the best possible capacity even with wet materials. We call this innovative design, a Non-Clogging Structure.

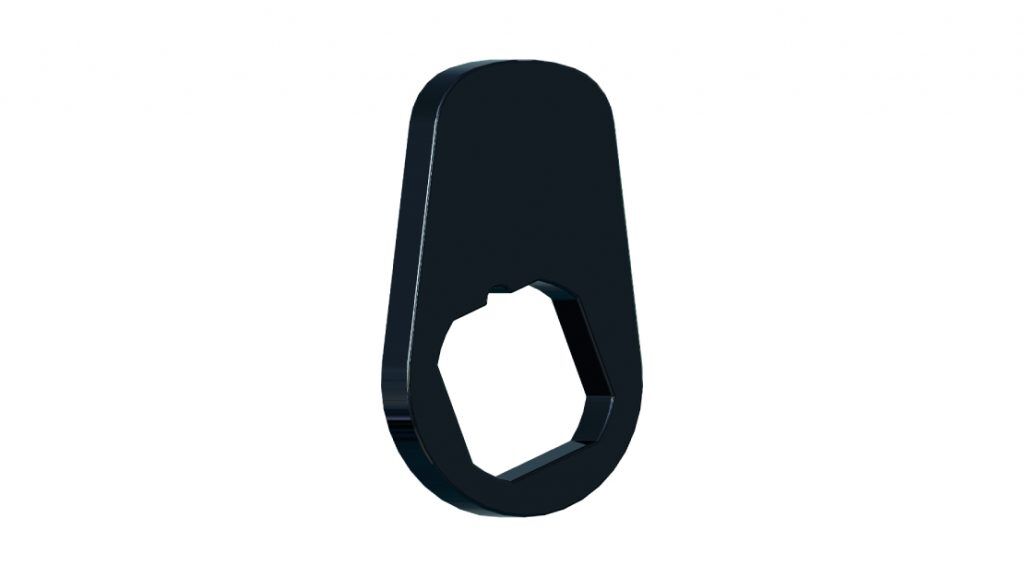

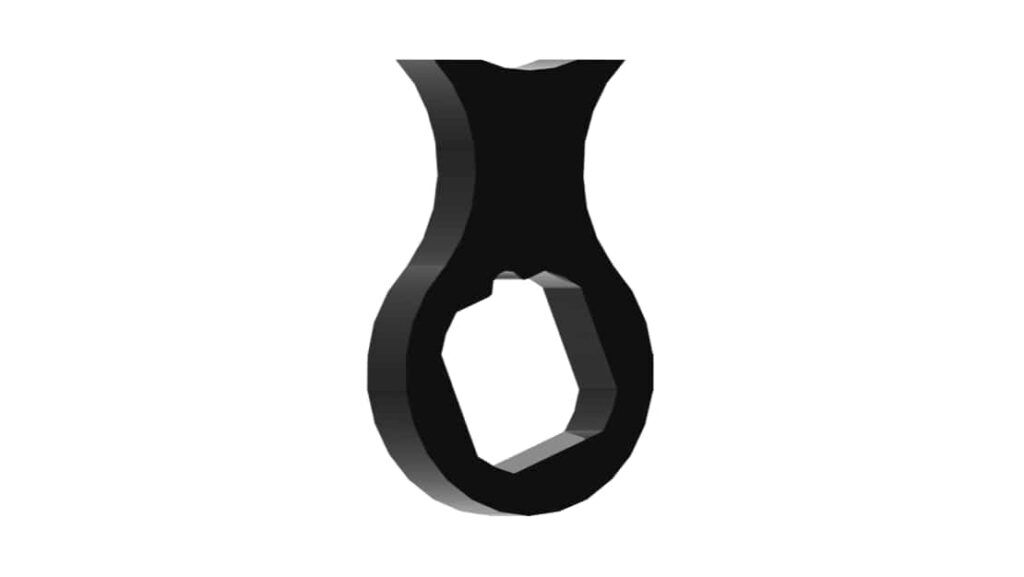

BLADE THICKNESS
8 mm
16 mm
25 mm
35 mm
ALLU TS-structure features a variety of blade thicknesses, which makes the TS-structure perfectly suited to a multitude of screening and mixing tasks. These blade thicknesses determine the fragment size of the end product.
Technical specifications
| Excavator | 12 – 28 t |
| Wheeloader | 6 – 14 t |
| Volume | 0.52 – 0.66 m3 |
| Oil flow | 70 – 120 LPM |
| Weight | 1130 kg |
| Excavator | 15 – 28 t |
| Wheeloader | 7 – 14 t |
| Volume | 0.76 – 0.99 m3 |
| Oil flow | 70 – 120 LPM |
| Weight | 1400 kg |
| Excavator | 12 – 28 t |
| Wheeloader | 6 – 14 t |
| Volume | 0.6 – 0.75 m3 |
| Oil flow | 70 – 120 LPM |
| Weight | 1220 kg |
| Excavator | 16 – 28 t |
| Wheeloaders | 7 – 14 t |
| Volume | 0.79 – 1.01 m3 |
| Oil flow | 95 – 160 LPM |
| Weight | 1410 kg |
| Excavator | 20 – 28 t |
| Wheeloaders | 7 – 14 t |
| Volume | 1.15 – 1.53 m3 |
| Oil flow | 95 – 160 LPM |
| Weight | 1760 kg |
| Excavator | 16 – 35 t |
| Wheeloaders | 8 – 22 t |
| Volume | 0.83 – 1.04 m3 |
| Oil flow | 95 – 160 LPM |
| Weight | 1610 kg |
| Excavator | 20 – 35 t |
| Wheeloaders | 8 – 22 t |
| Volume | 1.22 – 1.57 m3 |
| Oil flow | 95 – 160 LPM |
| Weight | 2000 kg |
| Excavator | 24 – 35 t |
| Wheeloaders | 12 – 22 t |
| Volume | 1.61 – 2.10 m3 |
| Oil flow | 120 – 200 LPM |
| Weight | 2520 kg |
| Excavator | 20 – 35 t |
| Wheeloaders | 10 – 22 t |
| Volume | 1.24 – 1.56 m3 |
| Oil flow | 95 – 160 LPM |
| Weight | 1930 kg |
| Excavator | 24 – 35 t |
| Wheeloaders | 12 – 22 t |
| Volume | 1.82 – 2.38 m3 |
| Oil flow | 120 – 200 LPM |
| Weight | 2360 kg |
| Excavator | 30 – 35 t |
| Wheeloaders | 14 – 22 t |
| Volume | 2.40 – 3.21 m3 |
| Oil flow | 120 – 200 LPM |
| Weight | 3020 kg |
| Excavator | 18 – 45 t |
| Wheeloaders | 8 – 30 t |
| Volume | 0.85 – 1.07 m3 |
| Oil flow | 140 – 235 LPM |
| Weight | 1950 kg |
| Excavator | 22 – 45 t |
| Wheeloaders | 10 – 30 t |
| Volume | 1.25 – 1.62 m3 |
| Oil flow | 140 – 235 LPM |
| Weight | 2400 kg |
| Excavator | 26 – 45 t |
| Wheeloaders | 14 – 30 t |
| Volume | 1.65 – 2.16 m3 |
| Oil flow | 140 – 235 LPM |
| Weight | 2960 kg |
| Excavator | 22 – 45 t |
| Wheeloaders | 10 – 30 t |
| Volume | 1.26 – 1.59 m3 |
| Oil flow | 140 – 235 LPM |
| Weight | 2280 kg |
| Excavator | 27 – 45 t |
| Wheeloaders | 14 – 30 t |
| Volume | 1.85 – 2.43 m3 |
| Oil flow | 140 – 235 LPM |
| Weight | 2780 kg |
| Excavator | 32 – 45 t |
| Wheeloaders | 16 – 30 t |
| Volume | 2.43 – 3.27 m3 |
| Oil flow | 190 – 315 LPM |
| Weight | 3490 kg |
| Excavator | 36 – 45 t |
| Wheeloaders | 18 – 30 t |
| Volume | 3.02 – 4.12 m3 |
| Oil flow | 240 – 400 LPM |
| Weight | 4080 kg |
| Excavator | 12 – 28 t |
| Wheeloader | 6-14 t |
| Volume m3 | 0.52-0.66 m3 |
| Oil Flow | 90-160 LPM |
| Weight | 1160 kg |
| Excavator | 15-28 t |
| Wheeloader | 7-14 t |
| Volume | 0.76-0.99 m3 |
| Oil Flow | 90-160 LPM |
| Weight | 1420 kg |
| Excavator | 16-28 t |
| Wheeloader | 7-14 t |
| Volume | 0.76-0.99 m3 |
| Oil Flow | 120-200 LPM |
| Weight | 1440 kg |
| Excavator | 20-28 t |
| Wheeloader | 9-14 t |
| Volume | 1.15-1.53 m3 |
| Oil Flow | 120-200 LPM |
| Weight | 1830 kg |
| Excavator | 16-35 t |
| Wheeloader | 8-22 t |
| Volume | 0.83-1.04 m3 |
| Oil Flow | 120-200 LPM |
| Weight | 1630 kg |
| Excavator | 20-35 t |
| Wheeloader | 9-22 t |
| Volume | 1.22-1.57 m3 |
| Oil Flow | 120-200 LPM |
| Weight | 2010 kg |
| Excavator | 24-35 t |
| Wheeloader | 12-22 t |
| Volume | 1.61-2.1 m3 |
| Oil Flow | 140-235 LPM |
| Weight | 2620 kg |
| Excavator | 20-35 t |
| Wheeloader | 9-22 t |
| Volume | 1.24-1.56 m3 |
| Oil Flow | 120-200 LPM |
| Weight | 1940 kg |
| Excavator | 24-35 t |
| Wheeloader | 12-22 t |
| Volume | 1.82-2.38 m3 |
| Oil Flow | 140-235 LPM |
| Weight | 2520 kg |
| Excavator | 30-35 t |
| Wheeloader | 14-22 t |
| Volume | 2.4-3.21 m3 |
| Oil Flow | 190-315 LPM |
| Weight | 3150 kg |
| Excavator | 18-45 t |
| Wheeloader | 8-30 t |
| Volume | 0.85-1.07 m3 |
| Oil Flow | 190-315 LPM |
| Weight | 1970 kg |
| Excavator | 22-45 t |
| Wheeloader | 10-30 t |
| Volume | 1.25-1.61 m3 |
| Oil Flow | 190-315 LPM |
| Weight | 2460 kg |
| Excavator | 36-45 t |
| Wheeloader | 14-30 t |
| Volume | 1.65-2.16 m3 |
| Oil Flow | 190-315 LPM |
| Weight | 3020 kg |
| Excavator | 22-45 t |
| Wheeloader | 10-30 t |
| Volume | 1.26-1.59 m3 |
| Oil Flow | 190-315 LPM |
| Weight | 2300 kg |
| Excavator | 27-45 t |
| Wheeloader | 14-30 t |
| Volume | 1.85-2.43 m3 |
| Oil Flow | 190-315 LPM |
| Weight | 2890 kg |
| Excavator | 32-45 t |
| Wheeloader | 16-30 t |
| Volume | 2.43-3.27 m3 |
| Oil Flow | 190-315 LPM |
| Weight | 3500 kg |
MAXIMISE PROFITABILITY, EFFICIENCY
AND SAFETY ON SITE
ALLU Transformers are fitted with the ALLU Sensor to maximise the profitability, efficiency and safety at the job sites.
- Working hours
- Correct working angle
- State of the machine – proactively suggesting maintenance and replacement of wear parts
- Weight of the Transformer without adapter
- Warranty
- Troubleshooting
Main Application Areas
- Demolition
- Excavation
- Construction
- Utility and Road works
- Waste Recycling
- Asphalt Recycling
- Waste Rock Handling at quarries
- Concrete Pipe Industry
- Topsoil screening
